OVERVIEW

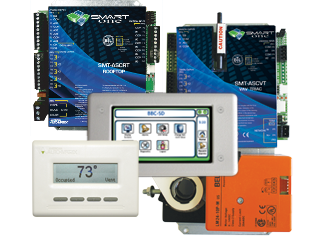

The SmartOne™ line of Application Specific Controllers
and the BACnet Building Controller Small Display (BBC-SD) combine the power and openness of BACnet and BTL listings with the
flexibility of distribution availability. This method of BACnet product distribution is an industry first, and offers users
access to BACnet controls that are BTL listed.
By utilizing BACnet as the base communication protocol, both SmartOne and BBC-SD products provide a robust open protocol
solution that can be adapted to a BACnet system architecture, providing users with the most complete solution in the industry
today. Through the power of BACnet, installers and end-users alike will acquire the security and comfort of knowing their
system can be combined with a third-party integration scenario as their needs grow and change in the years to come.
With control like this, you can be the SmartOne.
|
|
Configuration Wizard Features
•Provided as a free download with no up-front licensing costs.
•A complete user friendly experience – built on the Microsoft® .NET Framework.
•Utilizes project-based configuration – allowing for devices, configurations, and network settings to be saved and recalled at any time.
•Performs automated discovery of SmartOne devices connected to the BACnet network with the ability to manually address.
•Intuitive configuration wizards for each SmartOne device model – allowing rapid device configuration through a series of steps.
•Generated configuration files via wizards can be saved for later use, or for downloading to multiple devices.
•Program devices either online, or completely offline.
•Base configuration templates provided and bundled, reducing programming and setup time.
•All Relay outputs include timers for minimum on/off and run hour tracking.
•Supports BACnet/IP network communications to SmartOne devices connected to Matrix Router product or third-party BACnet router.
•Supports the ability to reference BBMDs or devices acting as BBMDs, as well as the ability to register as a foreign device to a BBMD for temporary broadcast access to a global BACnet network.
•Supports direct PC to BACnet MS/TP network connections using the optional SMT-Link.
•Advanced configuration explorer tools provided – allowing the ability to monitor individual objects and properties of SmartOne devices. Can be used in both online and offline modes.
|
|
Datasheet
|
|
SMT-ASCRT Features (SmartOne Rooftop Controller)
•Software configurable device addressing for BACnet MS/TP network protocol.
•Dedicated Zone Temperature input utilizing STATbus protocol with the ability to network up to four (4) digital SBC-STAT devices.
•Five (5) Universal Inputs that can be configured for discharge temperature, outside air temperature, occupancy detection, proof of flow sensing, and other general purpose input sensing applications. The Universal Inputs are jumper selectable to allow for configuration of resistance, DC voltage, or current signal types.
•One (1) Opto-Isolated Digital Input that can be used for a status input or for pulse counting applications.
•Five (5) Relay Outputs, used for controlling a fan, two (2) stage heating, two (2) stage cooling, or economizer. All outputs include timers for minimum on/off, run hour tracking, as well as other control features for the rooftop control algorithm.
•Four (4) Analog Outputs, used for auxiliary PID control of proportional valves, economizer, or other application with a host device.
•Four (4) standard PID Control loops, fully configurable for analog output applications.
•On-board Real Time Clock (RTC) for time keeping.
•Support for one (1) BACnet Schedule, providing complete time of day scheduling.
•Economizer application allows fresh air and recycled air to be mixed depending on indoor and outdoor temperatures.
•Configurable setpoint with optional setback for unoccupied and night setback modes.
•On-board occupancy detection allows the device to switch to occupied mode based on a signal from an occupancy sensor connected to an available input.
|
|
SMT-ASCRT Datasheet
|
|
SMT-ASCHP Features (SmartOne Heatpump Controller)
•Software configurable device addressing for BACnet MS/TP network protocol.
•Dedicated Zone Temperature input utilizing STATbus protocol with the ability to network up to four (4) digital SBC-STAT devices.
•Five (5) Universal Inputs that can be configured for discharge temperature, outside air temperature, occupancy detection, proof of flow sensing, and other general purpose input sensing applications. The Universal Inputs are jumper selectable and allow for configuration of resistance, DC voltage, or current signal types.
•One (1) Opto-Isolated Digital Input that can be used for a status input or for pulse counting applications.
•Dedicated Fan Relay Output (BO1) with support for schedule control, failure interlocking, and other features.
•Dedicated Reversing Valve Relay Output (BO2) with configurable settling delay.
•Support for up to two (2) Relay Output stages of heating/cooling (BO3 and BO4) with support for temperature offset control of stages, DAT/OAT lockout, and deadband operation.
•User configurable Relay Outputs for single stage (BO5) or dual stage (BO4 and BO5) Auxiliary Heat Applications.
•All Relay outputs include timers for minimum on/off and run hour tracking.
•Four (4) Analog Outputs, used for auxiliary PID control of proportional valves, economizer, or other application with a host device.
•Four (4) standard PID Control loops that are fully configurable for analog output applications.
•On-board Real Time Clock (RTC) for time keeping.
•Support for one (1) BACnet Schedule, providing complete time of day scheduling.
•Economizer application allows fresh air and recycled air to be mixed depending on indoor and outdoor temperatures.
•Configurable setpoint with optional setback for unoccupied and night setback modes.
•On-board occupancy detection allows the controller to switch to occupied mode through an occupancy sensor connected to an available input.
|
|
SMT-ASCHP Datasheet
|
|
SMT-ASCFC Features (SmartOne Fancoil Controller)
•Software configurable device addressing for BACnet MS/TP network protocol.
•Dedicated Zone Temperature input utilizing STATbus protocol with the ability to network up to four (4) digital SBC-STAT devices.
•Control the Fan Speed through a locally connected SBC-STAT3 or over the BACnet network.
•Five (5) Universal Inputs that can be configured for discharge temperature, outside air temperature, occupancy detection, proof of flow sensing, and other general purpose input sensing applications. The Universal Inputs are jumper selectable and allow for configuration of resistance, DC voltage, or current signal types.
•One (1) Opto-Isolated Digital Input that can be used for a status input or for pulse counting applications.
•Five (5) Relay Outputs that control up to three fan speeds (BO1 = Low, BO2 = Medium, BO3 = High), or electric reheat application with temperature lockout options.
•Two (2) Valve Control routines with support for heating/cooling changeover, and temperature lockouts.
•All Relay outputs include timers for minimum on/off timers and run hour tracking.
•Four (4) Analog Outputs used for auxiliary PID control of proportional valves, economizer, or other application involving a host device.
•Four (4) standard PID Control loops that are fully configurable for analog output applications.
•On-board Real Time Clock (RTC) for time keeping.
•Support for one (1) BACnet Schedule, providing complete time of day scheduling.
•Economizer application allows fresh air and recycled air to be mixed depending on indoor and outdoor temperatures.
•Configurable setpoint with optional setback for unoccupied and night setback modes.
•On-board occupancy detection allows the controller to switch to occupied mode through an occupancy sensor connected to an available input.
|
|
SMT-ASCFC Datasheet
|
|
SMT-ASCVR Features (SmartOne VAV Controller Relay)
•Software configurable device addressing for BACnet MS/TP network protocol.
•Dedicated Zone Temperature input utilizing STATbus protocol with ability to network up to four (4) digital SBC-STAT devices.
•Two (2) Universal Inputs that can be configured for discharge temperature, occupancy detection, proof of flow sensing, and other general purpose input sensing applications. The Universal Inputs are jumper selectable and allow for configuration of resistance, DC voltage, or current signal types.
•Five (5) Binary Relay Outputs that can control a series or parallel fan, control up to four (4) stages of electric reheat, or manipulate an auxiliary valve for heating and cooling changeover. All outputs include run hour tracking.
•One (1) Analog Output, used for auxiliary PID control of proportional valves, or other application involving a host device.
•One (1) standard PID Control loop, fully configurable for analog output applications.
•Support for one (1) BACnet Schedule, providing complete time of day scheduling (A BACnet Time Synchronization message must be received periodically).
•Configurable setpoint with optional setback for unoccupied and night setback modes.
•On-board occupancy detection allows the device to switch to occupied mode based on a signal from an occupancy sensor connected to an available Input
|
|
SMT-ASCVR Datasheet
|
|
SMT-ASCVT Features (SmartOne VAV Controller Triac)
•Software configurable device addressing for BACnet MS/TP network protocol.
•Dedicated Zone Temperature input utilizing STATbus protocol with ability to network up to four (4) digital SBC-STAT devices.
•Two (2) Universal Inputs that can be configured for discharge temperature, occupancy detection, proof of flow sensing, and other general purpose input sensing applications. The Universal Inputs are jumper selectable and allow for configuration of resistance, DC voltage, or current signal types.
•Five (5) Binary Triac Outputs that can control a series or parallel fan, control up to four (4) stages of electric reheat, or manipulate an auxiliary valve for heating and cooling changeover. All outputs include run hour tracking.
•One (1) Analog Output, used for auxiliary PID control of proportional valves, or other application involving a host device.
•One (1) standard PID Control loop, fully configurable for analog output applications.
•Support for one (1) BACnet Schedule, providing complete time of day scheduling (A BACnet Time Synchronization message must be received periodically).
•Configurable setpoint with optional setback for unoccupied and night setback modes.
•On-board occupancy detection allows the device to switch to occupied mode based on a signal from an occupancy sensor connected to an available input.
|
|
SMT-ASCVT Datasheet
|
|
SBC-STAT Features (SBC STAT)
•Polarity insensitive wiring for error-free installation.
•Two wires for power and communication.
•Digital sensor for highly accurate readings of +/- 2%.
•Easy set-point adjustment via push-buttons.
•True graphical display: 122x32 pixels.
•Tri-color LED for system-state identification.
•Red LED for override indication and setpoint adjustment.
•Interchangeable faceplate for simple upgrades/downgrades.
•Electronics mounted in faceplate allowing pre-mounting of back plate can occur during installation.
|
|
SBC-STAT Datasheet
SBC-STAT Manual
|
|
Matrix-BBO Router Features (Matrix-BBO Router)
•Connects BACnet networks running over different datalink layers.
•Full Annex J support including BBMD and foreign device registration.
•Intuitive web browser-based configuration.
•One (1) 10/100 Base-T Ethernet port.
•One (1) EIA-485 port.
•SmartOne devices can be programmed with SmartOne Configuration Wizard over IP through this device.
•The Matrix-BBO Router communicates between BACnet MS/TP devices on the EIA-485 network and devices on a BAC net/IP or BACnet/Ethernet network.
•Line signaling: EIA-485, optically isolated.
•Wiring: shielded, twisted pair (EIA-485); CAT5 (Ethernet).
•Network protection: PTC, Tranzorb (EIA-485).
•Communications speed (EIA-485): 9600, 19.2k, 38.4k, 57.6k, 76.8k, 115.2k baud.
•Network configuration: multi-drop bus.
•Protocols: BACnet/IP, BACnet MS/TP, BACnet/Ethernet.
|
|
MATRIX-BBO Datasheet
|
|
SMT-LINK Features (SmartOne Communication Link)
The SMT-Link is a communication tool that provides a direct connection
to BACnet MS/TP networks using the SmartOne Configuration Wizard. This device can be used with networks that do not have a router capable of communicating
MS/TP to IP. The SMT-Link can communicate to small, stand-alone installations and large networks. Unlike third-party adapters, this communication device
provides an Ethernet link free of data loss. This connection provides reliable communication with the BACnet MS/TP's time-sensitive protocol requirements
and resolves potential network connection error issues.
|
|
SMT-LINK Datasheet
|
|
|
