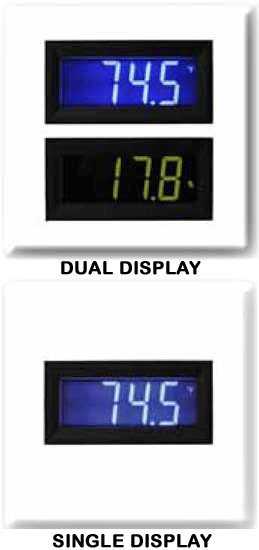

Automation Products Room Monitoring Display SRMD - Setra Room Monitoring Display The Model SRMD is a bright, attractive LCD display that provides a clear and remote view of real-time “at a glance” room conditions, ensuring effective environment control management. CE-compliant, the SRMD accepts 0 to 5 and 0 to 10 VDC analog signals from virtually any sensing technology including temperature, humidity, CO2, pressure, and others. Adjustable zero and span capabilities make it easy for the user to calibrate readings. Units are available with either a single or dual 1-inch, 3.5 digit LCD display and choice of red, blue or green backlight for easy viewing from across a room. These units are also wipedown capable requiring no special maintenance. The SRMD is easy to install, only requiring a standard 4-11/16 electrical box. This unit is also designed for direct compatibility with Setra’s Relative Humidity (SRH) sensors with temperature output. Units may be ordered and shipped as a factory calibrated bundle along with the SRMD for faster installation and commissioning. FEATURES Highly Visible 1” LCD Display Single LCD Display or Dual LCD Display Model Flush Mount Design Wipe Down Capable Available in Red, Green or Blue LCD Backlight Mount in Standard 4-11/16” sq. Electrical Box Compatible with Any Analog Sensor with 0-5VDC or 0-10VDC output CE Compliant APPLICATIONS Surgical Suites Intensive Care Isolation Rooms Pharmacology Research Laboratories Pharmaceutical Manufacturing Clean Rooms Biological Safety Lab Animal Research - Vivarium Organic Laboratory SETRA
