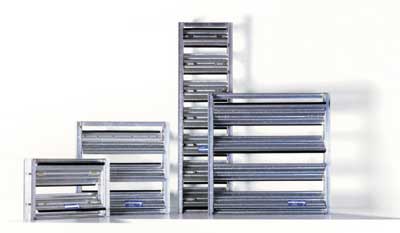

Volume Control
and Specialty Control Dampers
VD-1330
- Class I
-
Class I — High
Performance
-
Very tight closure
and high pressures or velocities.
|
|
 |
VD-1330
- Class II
-
Class II — Performance
Blades
-
Tight closure
and lower pressures or velocities.
|
|
|
VD-1320
- Class III
-
Class III —
Standard Blades
-
Normal shut-off
in return air or balancing applications - not for outside air.
|
|
|
VD-1250
Aluminum — Extruded Airfoil Shape
-
Designed
for tight shutoff.
|
|
 |
VD-1250
Thermal — Extruded Airfoil Shape
-
Designed
for tight shutoff.
|
|
|
VD-1640
Stainless Steel
-
Designed for
tight shutoff
|
|
|
Balancing
Dampers
BD-1300
-
Dampers balance air flow in commercial
or light industrial applications. Balancing dampers have no seals so they
are not rated for tight shut-off. Johnson Controls offers a 3-year warranty
on materials and workmanship.
|
|
|
Round Dampers
Balancing RB-2000
-
Balancing —
without Seals
-
Use in balancing air flow in dynamic HVAC
systems. Available with or without factory-installed manual locking quadrant.
|
|
 |
Control
RC-2000
-
Control
— with Seals
-
Use as a low leakage control damper in
HVAC systems. Available with or without factory-installed actuator.
|
|
|
Fire RF-2000
-
Fire
-
Designed to prevent
the spread of fire with a 1-1/2 hour fire rating in a dynamic HVAC system
during life safety situations.
|
|
 |
Smoke (Class
I) - RS-2000
-
Smoke
-
Designed to prevent
the spread of smoke in a dynamic HVAC system during life safety situations.
|
|
|
Combination
- RT-2000
-
Combination
Fire/Smoke
-
Designed to prevent
the spread of smoke and with spread of fire with a 1-1/2 hour fire rating
in a dynamic HVAC system during life safety situations.
|
|
|
Zone Dampers
ZD-1800
-
Zone dampers for
residential, light industrial, commercial applications. Our zone
dampers are gear driven, providing less friction and low torque. Factory
assembled and tested.
-
All zone dampers come with 18-gauge Triple
V opposed blades with no bearing and no seals. Your choice of actuator
or no actuator.
|
|
|
Fire Dampers
FD-1300 (Airfoil)
FD-1600 (Triple V)
-
The fire damper is a two-position device intended to restrict
the spread of fire in HVAC systems — in the event of a fire, the fire damper
automatically closes tight and stays closed, even when the fan is still
running.
-
When the FUSIBLE LINK temperature reaches 165°F,
212°F or 285°F (depending on model selected), the link releases
a high-torque spring and BLADES SLAM SHUT.
|
|
 |
Smoke Dampers
SD-1630
Class I - Electric
SD-1630
Class I - Pneumatic
SD-1620
- Class II - Electric
SD-1620
- Class II - Pneumatic
-
Two-Position or Modulating Dampers
-
Restricts the spread of smoke in HVAC systems that are designed
to be automatically shut down in the event of a fire. Or controls the movement
of smoke within a building when the HVAC system is operational in engineered
smoke control systems.
-
Class I Airfoil or Class II Triple V blades available, along
with your choice of an electric or pneumatic actuator.
|
|
 |
Combination Fire/Smoke
Dampers
FS-1620 Class II
FS-1630 Class I
-
Combination dampers restrict the spread of fire and smoke
in HVAC systems. The fire and smoke ratings are listed below.
-
Fire - UL 555 1-1/2 hour fire-rated
-
Smoke - UL 555S Class II leakage-rated and UL-555S Class
|
|
 |
|
|
|
